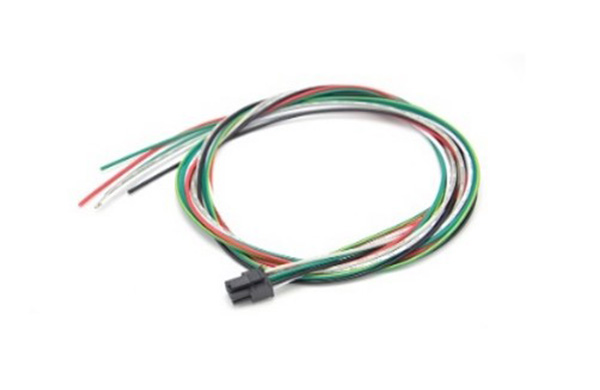

At present, there are three mainstream standards for terminal connection wires in our country: 3C standard, L standard, and VDE standard. The internal conductor of terminal connection wires is usually tinned copper or bare copper. Below, we will introduce the composition and structure of terminal connection wires:

1. The raw material for the sheath is made of imported high heat resistant PVC sheath material from abroad.

2. The barrier layer of the terminal connection wire: We use horizontally rolled or braided tin plated soft copper wire with a diameter of 0.1 millimeters or more, which can greatly improve the cable's resistance to detours and noise.

3. Insulation material: using imported types from abroad;

4. The terminal connection wire conductor can be made of tin plated soft copper wire with a European and American wire gauge of 14-30AWG, as well as electrical soft copper wire with a cross-sectional area of 0.3mm 2-2.0mm ². There are generally three forms of conductor methods: 1. Stranded conductor 2. OS-1 (TCW) conductor 3. Solid conductor.

It is most suitable for use as a data transmission cable between mobile components and motherboards, between PCB boards, and in miniaturized electrical devices. The specifications for ordinary applications include various spacing flexible cables such as 0.5mm, 0.8mm, 1.0mm, 1.25mm, 1.27mm, 1.5mm, 2.0mm, 2.54mm, etc.

Applied to the connection between various printer heads and motherboards, signal transmission and board connection of products such as plotters, scanners, copiers, speakers, LCD appliances, fax machines, various DVD players, etc. In modern electrical equipment, it is almost ubiquitous.
